Fully Assembled with Pre-Drilled Holes For Mounting Most Radar Domes - Furuno, Raytheon, Si-Tex, Koden, JRC, Simrad

Model # DLRM-1000  DISCONTINUED

LARGE POWER BOAT MOUNT

Base 12” x 13”, Overall Length

25 1/2”, Fits larger radar domes.

Hole Pattern 160mm x 160mm SQ.

and 140mm x 140mm SQ.

Call for pricing.

Model # DLRM-2000

SMALL RADAR MOUNT

FOR POWERBOATS AND

SAILBOATS

Can be bolted to deck and sail

masts. Overall length 17 1/2”,

Width at mounting bracket 6”,

Height at mounting bracket 7 1/2”,

Radar mounting base 8” x 9 3/8”,

Hole pattern 160mm x 160mm SQ.

and 140mm x 140mm SQ.

Also available in R-series for Raytheon SL72 and SL74 only.  Radar mounting base

11" x 11".

Model # DLRM-2000R

(for Raytheon SL72 & SL74 ONLY)

SMALL RADAR MOUNT

FOR POWERBOATS AND

SAILBOATS

Can be bolted to deck and sail

masts. Overall length 17 1/2”,

Width at mounting bracket 6”,

Height at mounting bracket 7 1/2”,

Radar mounting base 11” x 11”

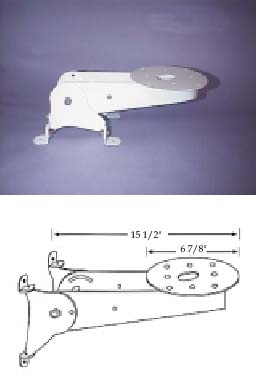

Model # DLSM-3000

SEARCH LIGHT BRACKET FOR

FLYBRIDGE MOUNT

Base 6 7/8” Round, Overall Length

15 1/2”, Fits Searchlight Model

ACR-RCL 100, RCL 50, ITT-Jabasco

60010, 61025, 61026, 61040, 61041,

61042

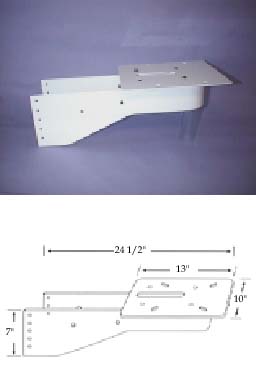

Model # DLRM-4000

MAST MOUNT

Fits masts from 4” to 8” wide. Base

size 10” x 13”, Overall Length 24

1/2”, Height 7”. Hole Pattern for

Radar 160mm x 160mm SQ. and

140mm x 140mm SQ.

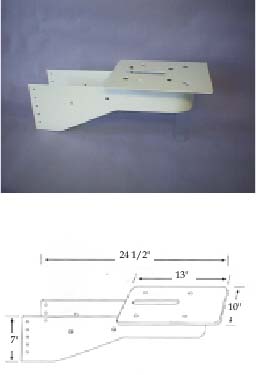

Model # DLRM-4000R

(for Raytheon SL72 & SL74 ONLY)

MAST MOUNT

Fits masts from 4” to 8” wide. Base

size 10” x 13”, Overall Length 24

1/2”, Height 7”.

Model # DLRM-5000S

ARCH RADAR MOUNT (Small)

9” x 8 1/2” Mount Base, Height 4”,

Width at base 3 5/16”, Length 14

1/2”,

Model # DLRM-5000R

ARCH RADAR MOUNT

(for Raytheon SL72 & SL74 ONLY)

11” x 11” Mount Base, Height 5

1/2”, Width at base 3 3/4”,

Length 14 1/2”

Model # DLRM-5000

ARCH RADAR MOUNT

Large 12” x 13” Mount Base, Height

6”, Width at base 5”, Length 19”,

To be used with large domes &

open array with holes for Furuno &

Raytheon

Model # DLRM-6000

HARDTOP RADAR MOUNT

Mount Base 8” x 10”, Height 12” (7”

x 3” Rectangle Tube), Top Plate 12” x

13”.  Same as above but

with 12” height.

Height available in 6",12",18" and 24"

Also available in R-series with oval tubing.

Model # DLRM-7000

RADAR MOUNTING BASE

8” x 8”, 4 1/4” High, To be mounted

to Heavy Duty Antenna Mount

(E.G. Model #105). Not to be used

with Plastic Mount. 1-14 Threads.

marine Aluminum constructed,

White powder coated. DLRM-7000A

same as 7000 with Model #105B

Antenna Mount. Also can use

model #175S

Model # DLRM-8000

HARDTOP RADAR MOUNT

Mount Base 8” x 8”, Height 12” (2”x

2” Oval Tube), Top Plate 8” x

8”, 12” height. For small Radar

Domes. Aluminum constructed,
